Deutz Engine Dynapac Road Roller , Second Hand Road Roller Machine

Basic Information
Place of Origin: CHINA
Brand Name: Dynapac
Certification: used road roller
Model Number: CA30D
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: 20ft container
Delivery Time: 5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 Unit
Name: Dynapac Road Roller Model: Dynapac CA30D
Engine: Cummins Year: 2012
Applicable Industries: Construction Works Other Name: Second Hand Road Roller
High Light:

drum roller compactor

,

used vibratory roller

Cummins Engine Dynapac Road Roller , Second Hand Road Roller Machine



Dynapac Road Roller Introduction



The road roller is a small road construction machine, which is mainly used for compacting loose granular soil, gravel, gravel, asphalt and the like. The main working environment is: compaction work such as wall edge, roadbed and pipeline laying.



Dynapac Road Roller Specification



Engine
MAKE Cummins
MODEL 4A BT3.9-C
GROSS POWER 110 hp 82 kw
POWER MEASURED @ 2200 rpm
ASPIRATION water cooled turbo diesel with after cooler
Operational
OPERATING WEIGHT 27668 lb 12550 kg
FUEL CAPACITY 66 gal 250 L
MAX SPEED 3.1 mph 5 km/h
TIRES *IF APPLICABLE 23.1x26
Drum
DRUM WIDTH 83.9 in 2130 mm
DRUM DIAMETER 60.7 in 1543 mm
STATIC LINEAR LOAD lb/in 38 kg/cm
VIBRATION FREQUENCY 1 33 Hz
NOMINAL AMPLITUDE - HIGH 0.07 in 1.7 mm
NOMINAL AMPLITUDE - LOW 0.03 in 0.8 mm
CENTRIFUGAL FORCE - HIGH 67442.7 lb 300 kN
CENTRIFUGAL FORCE - LOW 32822.1 lb 146 kN
Dimensions
OVERALL LENGTH 18.2 ft in 5550 mm
OVERALL WIDTH 7 ft in 2130 mm
HEIGHT TO TOP OF CAB 9.8 ft in 2972 mm
WHEELbase 9.4 ft in 2879 mm
GROUND CLEARANCE 15.7 in 400 mm



Dynapac Road Roller Details

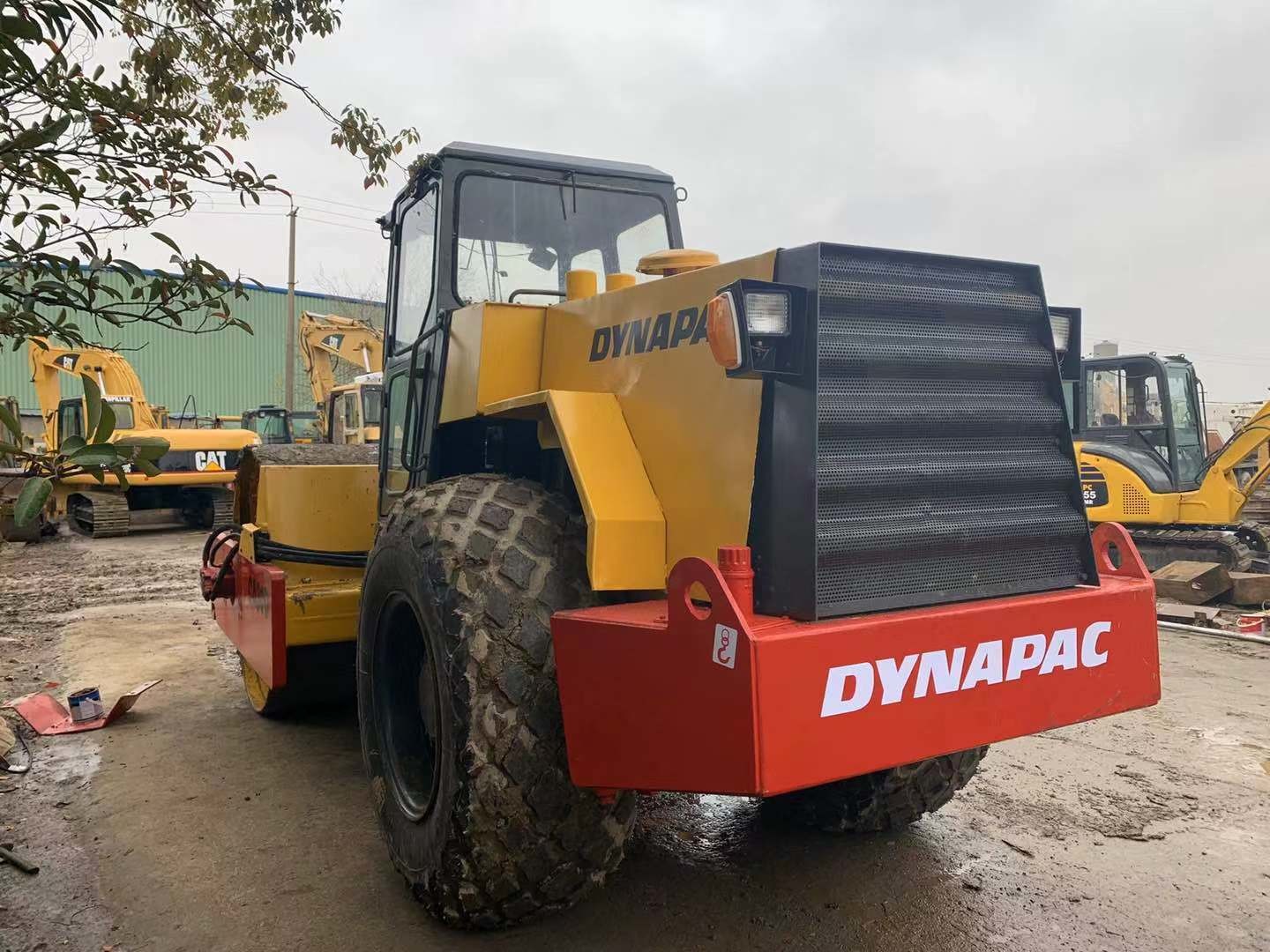

Deutz Engine Dynapac Road Roller , Second Hand Road Roller Machine 0



BEST SERVICES



1. Installation, operators training.

2. Maintenance: · We will send you the operation manual which can help you operate the machines properly, it can also help you to solve the common problems; · Call us at any time if you have problems about our product; If needed, we will send engineers to your site to solve your problems.
